LCD Display AC 3 Phase 4 Wire Static KWH Meter , Plastic Cover Three Phase Power Meter

Name: LCD Display AC 3 Phase 4 Wire Static KWH Meter Plastic Cover Three Phase Power Meter
Brand: TYNEHAM or OEM
Price: 1 USD

Brand Name : TYNEHAM or OEM

Model Number : DTS - 2L

Place of Origin : WENZHOU, CHINA

MOQ : 200 pcs

Price : Negotiate

Supply Ability : 30000 PCS Per Month

Packaging Details : Foam box inside, carton outside 20 Pcs / Carton

Name : AC 3 Phase 4 Wire Static KWH Meter

Type pf connect : Direct connect

Output Voltage : 3X220/380V

Display Type : LCD

Phase : Three Phase

Contact Now

DTS - 2L Three Phase Four Wire KWH Meter LCD Display Plastic Cover Watt Hour Meter

PRODUCT INFORMATION

As a professional manufacturer, TYNEHAM designs and produces electrical energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.

DTS - 2L Three Phase Four Wire KWH Meter adopts latest microelectronic technology to measure active electric energy of three-phase AC whole rated frequency is 50/60Hz, coordination meter age of positive and negative.The performance is in conformity with the technical requirements for three-phase electronic watt-hour meter stipulated in GB/T17215.321-2008 Class 1 and 2 Static A.C Active Watt-hour Meter standard.

SPECIFICATIONS

Product Details
Product Name		DTS - 2L AC 3 Phase 4 Wire Static KWH Meter
Installation type		Suspension type
Module No.		DTS - 2L Three Phase Four Wire KWH Meter( Electrical Energy Meter )
Brand		DTS-2L ( Electrical Energy Meter )
Rated Current		1.5(6)A;5(30)A;10(40)A;20(80)A;5(100)A
Reference Voltage		3110V; 3220V/380V; 3*230/400V
Frequence		50/60Hz
Display Mode		LCD
Accuracy		1.0
Impulse Constant		1000imp/kWh
Start Current		0.004Ib
Connection Mode		Direct mode
Communication& Protocol		/
PowerConsumption		≤1.0W;≤0.3VA
Material of meter case		PC

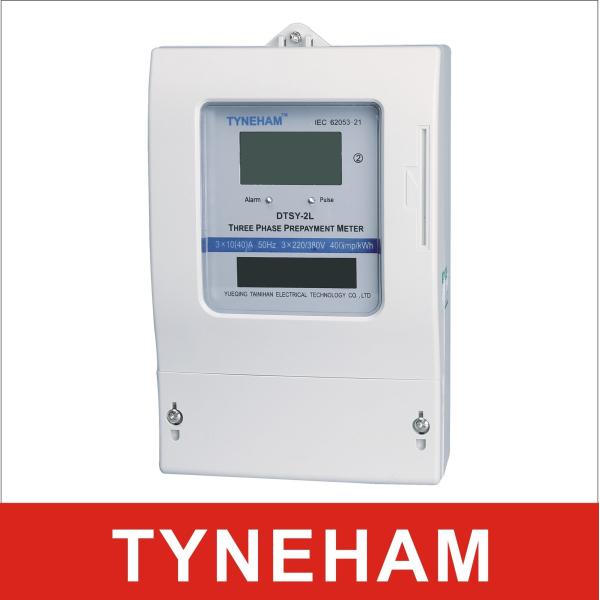

APPEARANCE

LCD Display AC 3 Phase 4 Wire Static KWH Meter , Plastic Cover Three Phase Power Meter
